Simple geometry example

Written by Ali A. Eftekhari

Last checked: June 2021

Ported to Python by Gavin M. Weir, June 2023

How to use cellLocations and faceLocations functiosn to define cell and face values, variable in space

import numpy as np
import matplotlib.pyplot as plt

# explicit imports
from pyfvtool import Grid2D
from pyfvtool import cellLocations, CellVariable
from pyfvtool import faceLocations, FaceVariable
from pyfvtool import visualizeCells

# Cell Variable:
# m = Grid2D(Nx=int(30), Ny=int(20), Lx=float(5.0), Ly=float(3.0))
m = Grid2D(int(30), int(20), float(5.0), float(3.0))

print(m.dims)

[30 20]

X, Y = cellLocations(m)

print((X.domain.dims, Y.domain.dims))
print((X.value.shape, Y.value.shape))

(array([30, 20]), array([30, 20]))
((30, 20), (30, 20))

type(m)

pyfvtool.mesh.Grid2D

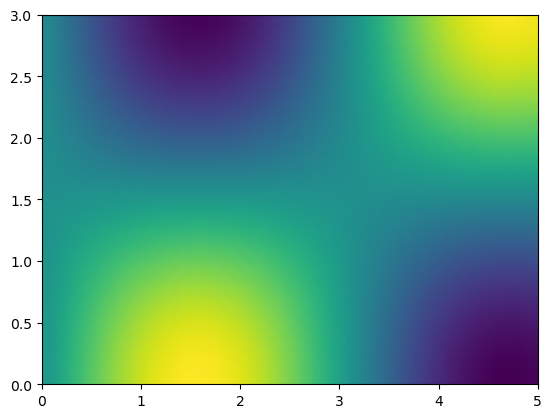

c = CellVariable(m, np.sin(X.value)*np.cos(Y.value))

plt.figure()
visualizeCells(c)

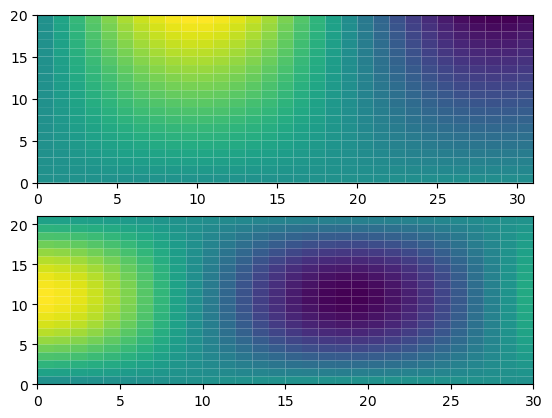

# Face variable:
Xf, Yf = faceLocations(m)

v = FaceVariable(m, 0)
v.xvalue = np.sin(Xf.xvalue)*Xf.yvalue
v.yvalue = np.cos(Yf.xvalue)*np.sin(Yf.yvalue)

hfig, (ax1, ax2) = plt.subplots(2, 1)

ax1.pcolor(v.xvalue.T, edgecolors=None)
ax2.pcolor(v.yvalue.T, edgecolors=None);
